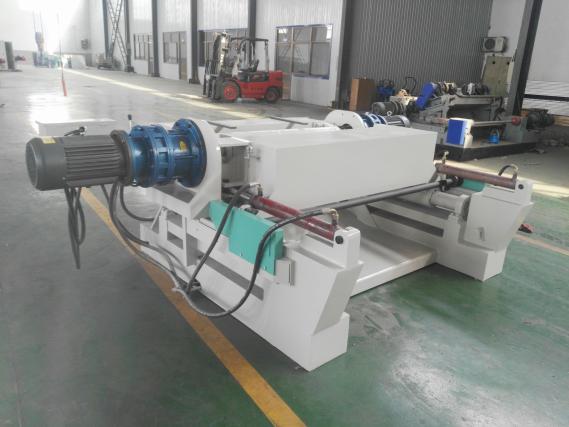

Heavy Duty Log Debarking Rouding Machine

Wood peeling machine, also known as wood peeling machine, is one of the series products of wood processing machinery. Single-roller peeling machine is used in large, medium and small paper mills and pulp mills, as well as the products of various enterprises for wood processing , such as chip mills, log yards, wood processing plants, forest plants, wood-based panel plants (such as plywood plants, MDF plants), etc. In recent years, China has been vigorously cutting forestry, Nearly ten million mu of poplar forest has been built in the southern forest area, which requires a large number of wood peeling machines.

Single-roller wood peeling machine adopts roller shaft type peeling, which is simple and solid in structure, strong in rigidity, low in failure rate and long in service life. It is composed of peeling roller shaft, feed inlet, leather outlet, wood outlet and power transmission device. Break the disadvantage of traditional drum type wood peeling machine, which needs to stop when discharging and feeding. Separate the wood export from the wood export to realize continuous work. The whole process from feeding → peeling → wood export → re-feeding → re-skinning → wood export is continuous, realizing flow operation and automatic production. The peeling effect can be adjusted for different kinds of wood. The length of wood is different, and the drying and wetting of bending screw are different. Single machine operation can peel 35-50 tons of logs a day, greatly saving manpower.

Working principle of single-roll peeling machine:

Single-roll peeling machine is a new generation of  wood peeling products developed on the basis of foreign models. This machine uses the  force generated by the rotor with stepped peeling teeth to make the wood segment move in a circular motion in the bin slot plate, and also rotate around the axis of the wood segment itself and jump irregularly. As a result, the continuous friction, impact, extrusion and stripping between wood segments and teeth, wood segments and wood segments, wood segments and silo grooves and comb plates lead to the rapid decomposition and stripping of bark and trunk, thus achieving the effect of * * peeling. The wood peeling machine is mainly composed of feeding mechanism, discharging mechanism, cutter head, transmission system, underframe, etc.
